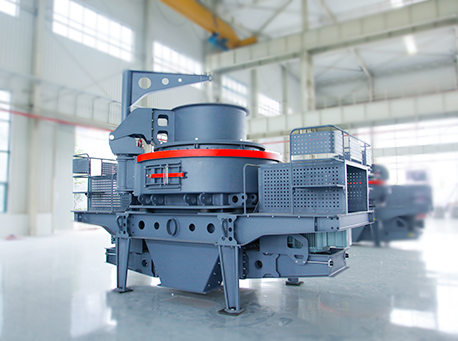

VSI6X Sand Making Machine

VSI6X Sand Making Machine

Due to the increasing market demand for the scale, intensification, energy conservation, environment protection and high-quality machine-made sand, SBM, a Chinese professional sand maker manufacturer, further optimizes the structure and function of traditional vertical-shaft impact crushers and launches a new generation of sand-making and reshaping machine with high efficiency and low costs --- VSI6X Sand Making Machine.

Technical Advantages

promote

Lower Costs in Usage and Maintenance

VSI6X Sand Making Machine is optimized on some structures and crafts of the impeller. The service life of some wearing parts is prolonged by 30~200% compared to the previous crushing machines under the same usage conditions. VSI6X Vertical-shaft Sand Maker is configured with simple lifting device.

loop

Safer and More Reliable Operation

When designing this sand making machine, the safety and reliability are taken into consideration. The more stable and reliable dual-motor drive and automatic diluted oil lubrication are adopted and at the same time, the gunk and the maintenance platform are optimized to ensure the safety and reliability of operation.

 service

Digitalized Processing, Higher Precision

There are tens of lines of numerical controlling machine tools. Operations such as steel plates' cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

performance

Sufficient Supply of Spare Parts, Worry-free Operation

SBM, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.

Working Principle

 Working Principle

VSI6X Sand Making Machine (also known as "Sand Maker") has two feed modes – "feed at center" and "feed at center & sides". As for the former mode "feed at center", materials at the feed hopper firstly pass through the central hole into the high-speed spinning rotor. In the rotor, materials are fully accelerated and thrown outwards from the launching port to collide with a part of materials that freely fall after rebound. Next, materials hit the surrounding vortex material liner (or the impact block) inside the vortex chamber together. In the chamber, materials are bounced to the top of crushing chamber firstly and then change their direction by moving downwards to form a material curtain with materials emitted from the runner of impeller. Finally, finished products are discharged from the bottom discharge opening. As for the latter mode "feed at center & sides", firstly, materials at the feed hopper pass through the circular hole. Then, materials are divided into two parts by the distributing tray. One part of materials enter the high-speed rotating impeller while the other part of materials fall from all sides of the tray. Materials in the impeller would be accelerated rapidly and thrown outwards at a high speed to collide with materials falling from all sides of the tray. Next, all materials hit the surrounding vortex material liner (or the impact block) inside the vortex chamber together. In the chamber, materials are bounced to the top of crushing chamber firstly and then change their direction by moving downwards to form a material curtain with materials emitted from the runner of impeller. Finally, finished products are discharged from the bottom discharge opening.

Main specification

Cases

Anchor powder making plant - 30,000 TPY

  • lime, gypsum
  • 325 mesh
  • construction industry

Barite powder making plant - 40,000 TPY

  • barite
  • 325 mesh
  • non-metallic mineral

Natural gypsum powder making plant

  • gypsum ore
  • 325 mesh
  • non-metallic mineral
