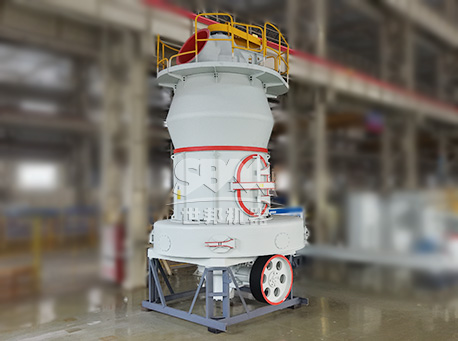

The MTW6X sixth-generation all-thin-oil lubricated intelligent European Trapezium grinding mill is based on the mature technology of the MTW European Trapezium grinding mill, the fifth-generation best-selling product of SBM. With the purpose of "smarter, more energy-saving, more efficient, more environmentally friendly and more reliable", it has been developed through multiple structural improvements and innovations, and deeply integrated the all-thin-oil lubrication system with the internet of things intelligent control technology. This high-performance product deeply meets the current urgent needs of powder production companies for energy saving.
Fewer transmission chains and more precise transmission ratios.
The main engine system and grinding rollers are all lubricated with thin oil.
It provides warnings, ensuring stable operation and higher quality powder.
An intelligent control system, it collects and analyzes data in real time.

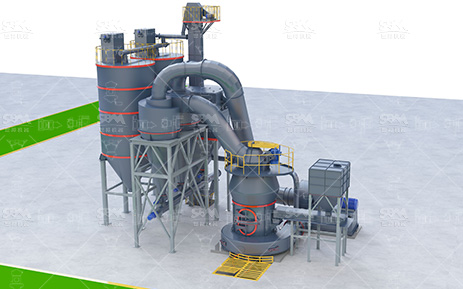

Screened materials are evenly fed into the grinding chamber by a variable-frequency belt feeder. After grinding, airflow carries the powder to the classifier.
Off-spec particles return to the chamber for regrinding, while qualified powder enters the cyclone collector for separation and collection, then discharged as final products.
Air flows back to the fan to form a closed circulation loop. The system runs under negative pressure and is equipped with a pulse dust collector, fully complying with environmental emission standards.
A: MTW6X is the sixth-gen intelligent trapezium mill with full thin-oil lubrication for the whole host and grinding rollers. It integrates IoT remote control, multi-point monitoring and integral bevel gear transmission for higher stability.
A: Full thin oil lubrication greatly reduces bearing heat generation, supports long-time non-stop continuous production, lowers failure frequency and extends service life of transmission components.
A: Accept raw materials of 35–50 mm; finished powder adjustable from 0.038 mm to 1.6 mm, widely used for fluorspar, limestone, gypsum and other mineral powder production.
A: Multi-point sensors collect vibration, temperature and load data in real time, send early warning signals for abnormal conditions, stabilize powder quality and reduce unexpected shutdown losses.
A: Absolutely. We offer full set supporting equipment including feeder, elevator, silo, pulse dust collector and packing machine, plus site layout design, installation guidance and operator training.
