Dryer

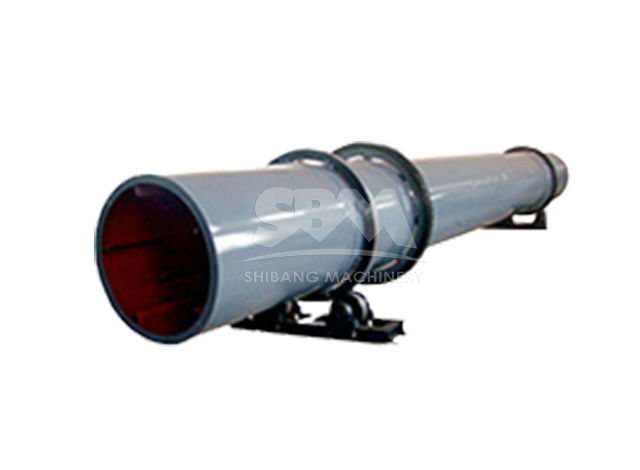

The rotary dryer can be used to dry the slag, clay and pulverized coal from the building material or metallurgical industry as well as the leaching residue during metal beneficiation and other materials, characterized by strong adaptability, widerange of application, simple operation and reliable running, etc.

Online Chat
Inquiry

Case

More

Hebei lime grinding production line with output of 400,000 tons per hour

Raw material: limestone

Processing capacity: 400,000 tons/year

Finished powder fineness: 325 mesh D90

Zhejiang calcite-limestone ultrafine powder production line with annual output of 100,000 tons

Raw material: calcite, limestone

Feeding particle size: ≤20mm

Finished powder fineness: 1250--1600 mesh

Gansu bituminous coal grinding production line with annual output of 200,000 tons

Raw material: bituminous coal

Processing capacity: 200,000 tons/year

Finished powder fineness: 200 mesh D90

Main specification

Model Motor power(kw) Throughput(m3/h)
φ800×8000 5.5 0.8—2
φ1000×10000 7.5 1—3.5
φ1200×10000 11 2.5—4
φ1500×12000 15 3.5—5
φ1500×15000 15 4—8
φ1500×18000 18.5 5—8.5
φ1800×12000 22 5—12
φ1800×14000 22 5—12
φ1800×15000 30 5.5—11
φ1800×20000 37 6—12
φ2200×12000 37 6—15
φ2200×14000 37 8—18
φ2200×16000 37 10—22
φ2400×14000 37 15—25
φ2400×18000 45 15—30
φ2400×20000 45 18—35
φ3000×20000 55 20—45
φ3000×25000 75 25—55
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
