New Product Recommendation: SBM PMD Permanent Magnet Direct-drive Intelligent European Trapezium Grinding Mill
SBM PMD Permanent Magnet Direct-drive Intelligent European Trapezium Grinding Mill makes a grand debut, equipped with core permanent magnet direct-drive technology and a full-chain intelligent control system.
Led by technological innovation and rooted in superior quality, it redefines the standard of high-efficiency powder grinding through refined design, and empowers industrial upgrading with robust technical strength.
Every grinding operation achieves a double breakthrough in efficiency and value, setting a new benchmark of high efficiency for the global powder grinding industry and opening up a new path for transformation and upgrading.
Permanent Magnet Direct Drive: Powerful, Dynamic and More Energy-Saving
Equipped with a high-efficiency permanent magnet synchronous direct-drive motor, it features an extremely simplified transmission path and realizes zero power loss. Its unique low-speed, high-torque output perfectly matches the mill load, delivering stronger and more stable power. Compared with traditional asynchronous motor drives, it achieves a comprehensive energy saving of 20%–30%.
High-Efficiency Classifier, Superior Finished Product Quality
Featuring an optimized structure and enhanced sealing performance, the new classifier delivers significantly improved airflow speed and stability. It not only achieves higher separation efficiency but also enables precise control over finished product particle size, greatly enhancing product competitiveness.
High-Performance Fan for Further Reduced System Energy Consumption
Equipped with a new customized high-performance fan, it ensures sufficient air volume and pressure for the system while improving pneumatic efficiency by 15%. It saves 8%–10% more electricity than conventional fans.
Remote Interconnection, Easy One-Click Control
Equipped with an intelligent control platform, it supports remote monitoring and operation via mobile APP. Wherever you are, you can view real-time equipment data, adjust operating parameters, and receive alarm notifications, realizing digital and mobile production management.
Working Principle
_副本.jpg)

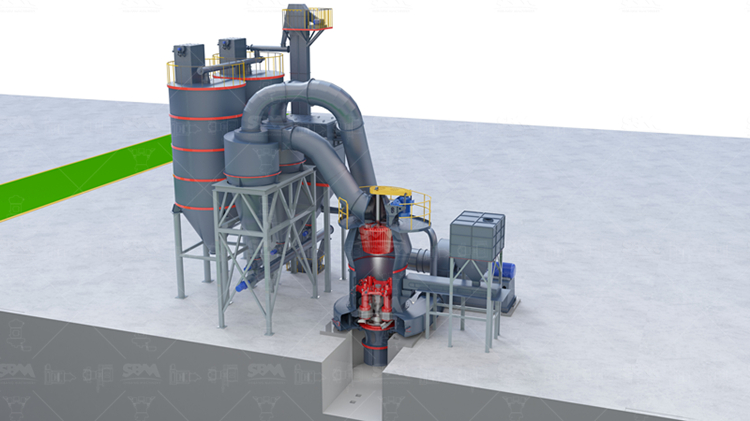

After being processed and qualified in the crushing stage, materials are fed into the grinding chamber of the main machine uniformly, quantitatively and continuously via a variable-frequency belt feeder for grinding.
The ground materials are driven by the airflow from the fan and sent to the classifier for particle size grading. Under the action of the grading system, materials that do not meet the fineness standard return to the grinding chamber for re-grinding, while qualified powder flows with the airflow through pipelines into the cyclone collector for gas-solid separation and collection. The final powder is discharged through the discharge mechanism as finished product.
The separated airflow flows back to the fan through the return duct at the top of the cyclone collector, forming a closed-loop air circuit. The whole system operates under negative pressure and is equipped with a pulse dust collector, ensuring all emission indicators meet national environmental protection standards.
The launch of the new-generation PMD Permanent Magnet Direct-drive Intelligent European Trapezium Grinding Mill marks not only another milestone in SBM's journey of technological innovation, but also a strong testament to China’s powder grinding equipment industry advancing toward high-end intelligent manufacturing.
SBM has always upheld responsibility and quality, continued to deepen its expertise in the powder grinding field, and constantly created better complete solutions for global customers. Together with partners from all sectors, we will forge ahead to build a brand-new future of high-quality development for the powder grinding industry!
