Shibang Vertical Slag Grinding Mill: Comprehensive Large-Scale Slag Powder Processing Equipment

Shibang Machinery's vertical slag grinding mill is a highly efficient, energy-saving, and environmentally friendly equipment for processing slag powder. It is widely used for grinding materials such as slag, coal gangue, and limestone. Featuring a vertical structural design, it offers advantages including a small footprint, high output, and minimal wear. Simultaneously, it effectively reduces production costs and enhances production efficiency.



The working principle of the vertical slag grinding mill is as follows: The main motor of the vertical mill drives the grinding disc through a reducer. Simultaneously, hot air enters the mill body through the inlet. Material falls from the feed inlet to the center of the grinding disc and moves uniformly from the center to the edge under centrifugal force. As it passes through the grinding zone of the roller track on the grinding disc, it is crushed by the grinding rollers. Large pieces are directly crushed, while fine particles form a bed under compression for inter-particle grinding. The pulverized material continues moving toward the grinding disc edge until carried away by the strong airflow at the air ring. Larger particles re-enter the grinding disc for further pulverization. As the airflow carrying material passes through the upper separator, coarse particles are returned to the grinding disc by the rotor blades for re-grinding. Qualified fine powder exits the mill with the airflow, collected by the system's collector and discharged as finished powder. Foreign objects such as iron pieces mixed with the material fall to the lower chamber of the mill due to their weight when reaching the grinding disc edge. They are then scraped into the slag discharge port by scrapers installed at the bottom of the grinding disc and discharged outside the machine (commonly known as slag discharge).



Key features of the vertical slag grinding mill include:
1. Integrated crushing, drying, grinding, classification, and conveying functions. Compact layout occupies approximately 50% of the floor space required by ball mill systems and allows for outdoor installation, significantly reducing investment costs.
2. Equipped with an automatic control system enabling seamless switching between remote and local operation, ensuring user-friendly control and labor savings.
3. The SBM vertical slag grinding mill optimizes grinding efficiency, powder drying, wear resistance of vulnerable components, and maintenance/replacement procedures. This achieves lower energy consumption, enhanced drying capacity, reduced wear on core parts, and easier maintenance, thereby lowering operational costs for customers.
4. The grinding rollers and grinding discs do not come into direct contact, resulting in low iron content in the final product. This effectively ensures the whiteness and purity of the material.
5. Featuring a sealed design, the machine operates under negative pressure with complete enclosure. This prevents dust leakage, maintains a clean environment, and achieves emission standards far exceeding international requirements.

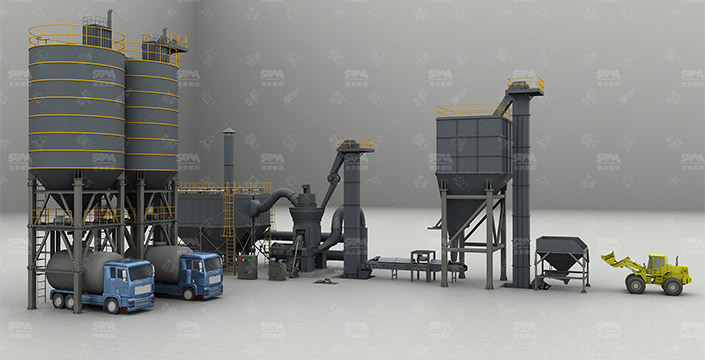

In terms of application, the vertical slag grinding mill is suitable for industries requiring grinding processes, such as construction, chemical, and metallurgical sectors. It can function as an independent grinding system or be integrated into production lines with other equipment. During operation, parameters such as material properties, fineness requirements, and output capacity must be reasonably configured and adjusted to ensure normal equipment operation and production stability.
In summary, the vertical slag grinding mill is a highly efficient, energy-saving, and environmentally friendly processing equipment for slag powder, boasting broad application prospects and market demand. With continuous technological advancements and market expansion, the application scope and market share of vertical slag grinding mills will continue to grow and increase.
