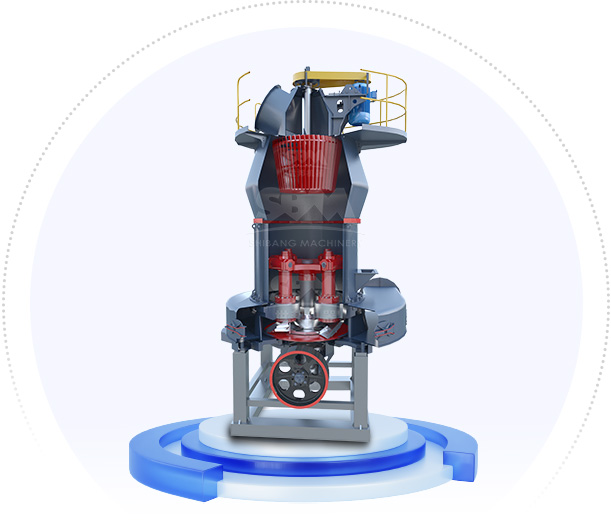

MTW 6X Fully Thin Oil Lubricated Intelligent European Trapezium Mill is a new-generation high-performance grinding equipment elaborately built by SBM. Based on years of technological accumulation and continuous innovation, the mill focuses on the core objectives of smarter, more energy-saving, higher-efficiency, more eco-friendly and more reliable. It has achieved upgrades and breakthroughs in multiple dimensions such as transmission structure, lubrication method and intelligent operation & maintenance. By deeply integrating the full oil lubrication system with IoT intelligent control technology, the equipment features more stable operation and higher production efficiency, with remarkable reduction in overall energy consumption and operation & maintenance costs. It provides a brand-new, low-carbon, energy-saving, quality-improving and efficiency-enhancing solution for the powder industry.
Closely meeting the core demands of powder enterprises for energy conservation, consumption reduction, quality improvement and efficiency enhancement, it takes "higher intelligence, lower energy consumption, higher efficiency, better environmental performance and greater reliability" as the R&D tenet. Breaking through the technical bottlenecks of traditional grinding mills, it deeply integrates the full thin oil lubrication system with IoT intelligent control technology. Through multiple structural optimizations and process innovations, a new generation of powder processing equipment with outstanding stability, high efficiency and intelligence has been developed.

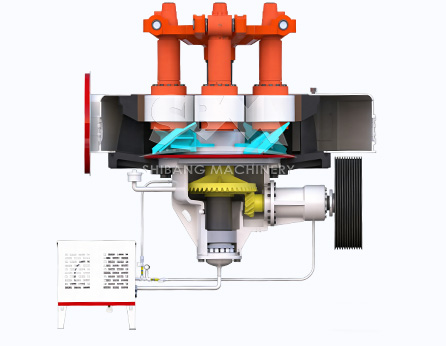

Thin Oil Lubrication Drive System

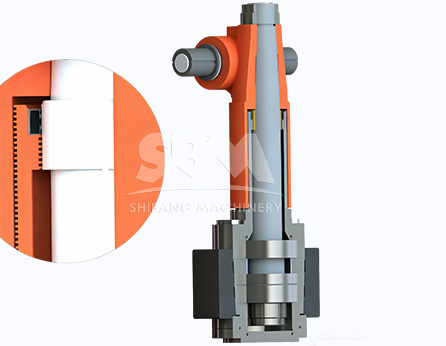

Thin Oil Lubrication Grinding Roller System

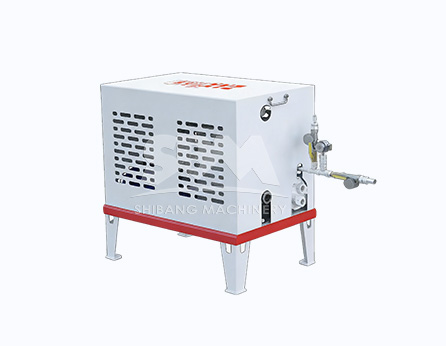

Thin Oil Lubrication Station
The core main drive and grinding roller system fully adopt the advanced full thin oil lubrication solution, featuring excellent heat dissipation, low wear and long service life, and realizing maintenance-free operation of key components without shutdown.
01/06
Adopting an optimized integral bevel gear transmission structure, it features a concise transmission chain, stable operation and high transmission efficiency, reducing invalid energy consumption at the power source.
02/06
The innovatively designed new classifier optimizes the internal airflow field and sealing structure, achieving simultaneous improvement in powder separation efficiency and precision.
03/06
The system is equipped with a custom-developed high-performance fan. Optimized aerodynamic performance greatly enhances the energy efficiency of the overall air system, cutting system power consumption by 8%-10% compared with traditional fans.
04/06
Equipped with a multi-point online condition monitoring system, it collects and intelligently analyzes key parameters such as vibration and temperature in real time to realize early fault warning.
05/06
Deeply integrated with IoT technology and equipped with an intelligent control system, it supports remote real-time monitoring, data checking, one-click start-stop and parameter adjustment via mobile APP.
06/06
| MTW6X European Trapezium Mill | ||||||||
| Model | MTW6X150 | MTW6X185 | MTW6X198 | MTW6X218 | ||||
| Main Engine Power (kW) | 110-132 | 185-200 | 220-250 | 280-315 | ||||
| Fan Power (kW) | 90-110 | 185-200 | 220-250 | 280-315 | ||||
| Classifier Power (kW) | 18.5-22 | 30-37 | 45-55 | 55-75 | ||||
| Main Engine Rotation Speed (r/min) | 80-105 | 65-90 | 60-85 | 50-70 | ||||
| Maximum Feed Size (mm) | 35 | 40 | 45 | 50 | ||||
| Fineness | 1.6–0.045 mm, minimum fineness up to 0.038 mm | |||||||
| Capacity (t/h) | 6-25 | 10-38 | 15-45 | 18-55 | ||||

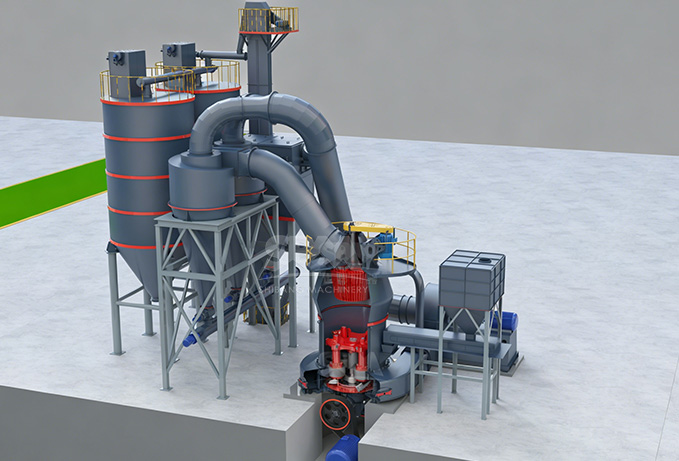

Qualified materials after crushing and screening are evenly and quantitatively fed into the grinding chamber of the main machine by a variable-frequency belt feeder for grinding operation.The ground materials are conveyed to the classifier by fan airflow for particle size classification. During classification, materials failing to meet the fineness standard fall back to the grinding chamber for re-grinding, while qualified powder enters the cyclone powder collector through pipelines along with the airflow to complete gas-solid separation and powder collection. The collected powder is discharged through the discharging mechanism as the final finished product. The separated airflow returns to the fan via the return air duct at the top of the cyclone collector, forming a closed-loop air circulation system. The whole equipment operates under negative pressure and is equipped with a pulse dust collector, ensuring all emission indicators comply with national environmental protection standards.
As the core equipment for large-scale and intensive powder production lines, SBM MTW 6X Fully Thin Oil Lubricated Intelligent European Trapezium Mill is widely applied throughout the industrial chains of building materials, metallurgy, electric power, chemical industry, new energy, new materials, and large and medium-sized non-metallic ore powder making.
It is specifically suitable for limestone, calcite, dolomite, environmental desulfurization limestone powder production, magnetic rare earth materials, bentonite, barite, clean coal powder preparation, petroleum coke pulverization and other sectors. It is especially ideal for grinding non-flammable and non-explosive materials with Mohs hardness below grade 7 and moisture content less than 6%.
Limestone
Calcite
Marble
Bentonite

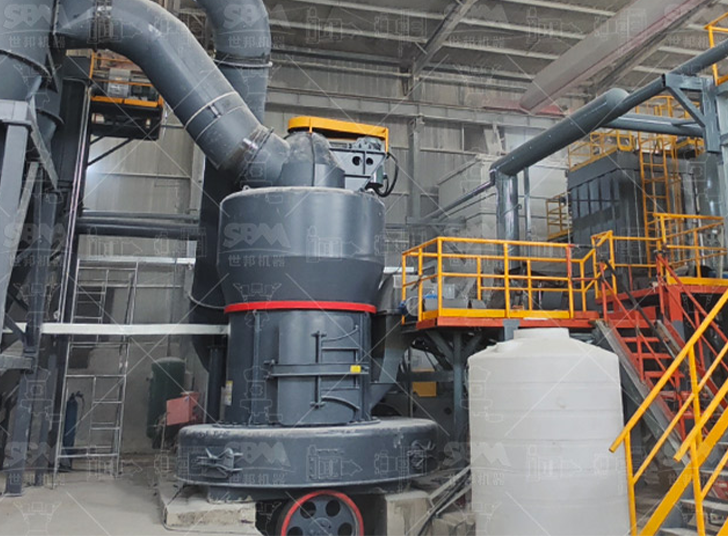

Material: Fluorspar Fineness: 200 Mesh Application: Building Materials Industry

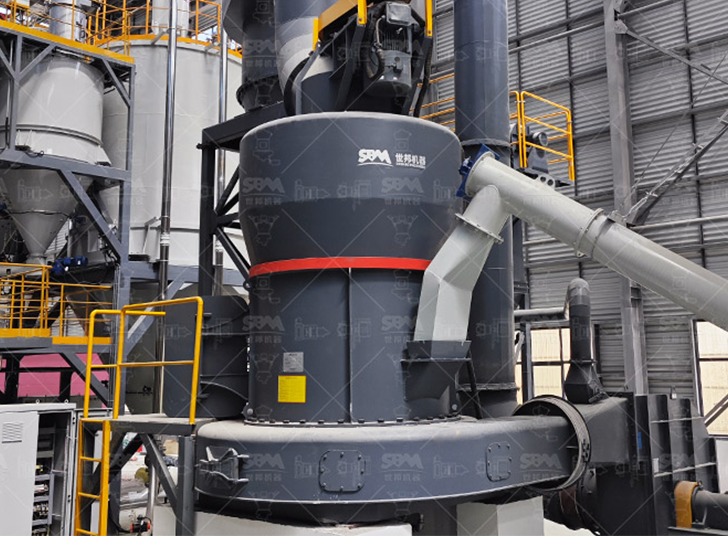

Raw Material: Attapulgite Product Application: Building Materials Industry

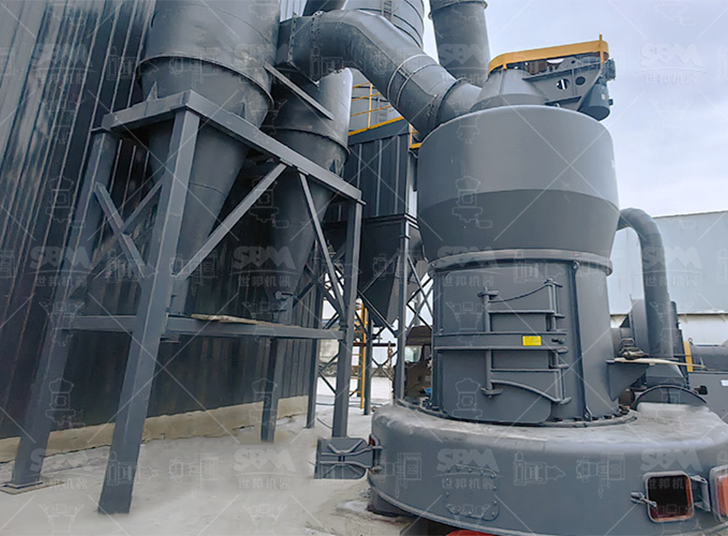

Material: Limestone Fineness: 250 Mesh Application: Desulfurization in Power Plants
