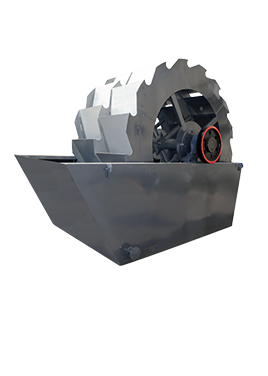

XSD Sand Washer

The efficient sand washing machine of XSD series is a kind of cleaning equipment of international advanced level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products. According to customers’ feedback, it meets their demands well both on capacity and on the cleanliness.


Technical Advantages

Mature and stable

The sand washing machine features simple structure, big gap between impeller transmission bearing system and water as well as raw materials, so that it protects the bearing from dipping into the water, sand and other pollutants.

Thin oil lubrication

Mid-fineness sand seldom lapses out. The grade and the fineness of washed build sand can reach required standard.

Investment economy

High ablution, big capacity, low consumption, long serving life.

Configuration science, reduced energy consumption

New hanging type cage sorter, variable frequency control, fine controllable finished product; isolated cyclone powder collector, high efficiency of collecting powder; curved air duct, small airflow resistance

Case

Main specification

Model Size of impeller (mm) Maximum feed size (mm) Capacity (t/h) Speed (r/min) Power (kw) Overall dimension (mm)
XSD2610 Φ2600×1000 ≤10 20-60 1.178 7.5 3255×1982×2690
XSD3016 Φ3000×1600 ≤10 70-120 1.179 15 3845×3000×3080
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
