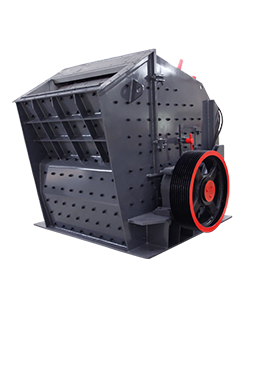

PFW Impact Crusher

Base on the plentiful experience of producing and marketing of impact crusher, SBM R&D institution designed the PFW series impact crusher. It is the newest style impact crusher and has been widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.


Technical Advantages

Mature and stable

Advanced Manufacture process and high-end fabrication material

Thin oil lubrication

Heavy rotor design and tight test method improve the rotor performance.

Investment economy

Overall type cast steel structure bearing base improves anti load resistance capacity.

Configuration science, reduced energy consumption

Hydraulic jacking device and hydraulic regulated discharging port is helpful to save labor and time.

Case

Main specification

Model Rotor spec (mm) Feed opening (mm) Maximum feeding size (mm) Capacity(t/h) Power(kw) Overall dimension (mm)
PFW1214II Ф1150×1400 1100×1430 500 130-200 132 2400×2310×2550
PFW1315II Ф1300×1500 1200×1530 600 180-320 200 2700×2570×2800
PFW1318II Ф1300×1800 1200×1830 700 240-400 250 2700×2870×2800
PFW1415II Ф1400×1500 1450×1530 700 300-480 250 2900×2700×3000
PFW1214Ⅲ Ф1150×1400 570×1430 250 90-170 132 2550×2310×2100
PFW1315Ⅲ Ф1300×1500 625×1530 300 180-270 200 2960×2570×2380
PFW1318Ⅲ Ф1300×1800 625×1830 300 220-300 250 2960×2870×2380
PFW1415Ⅲ Ф1400×1500 800×1530 350 280-350 250 3120×2650×2660
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
