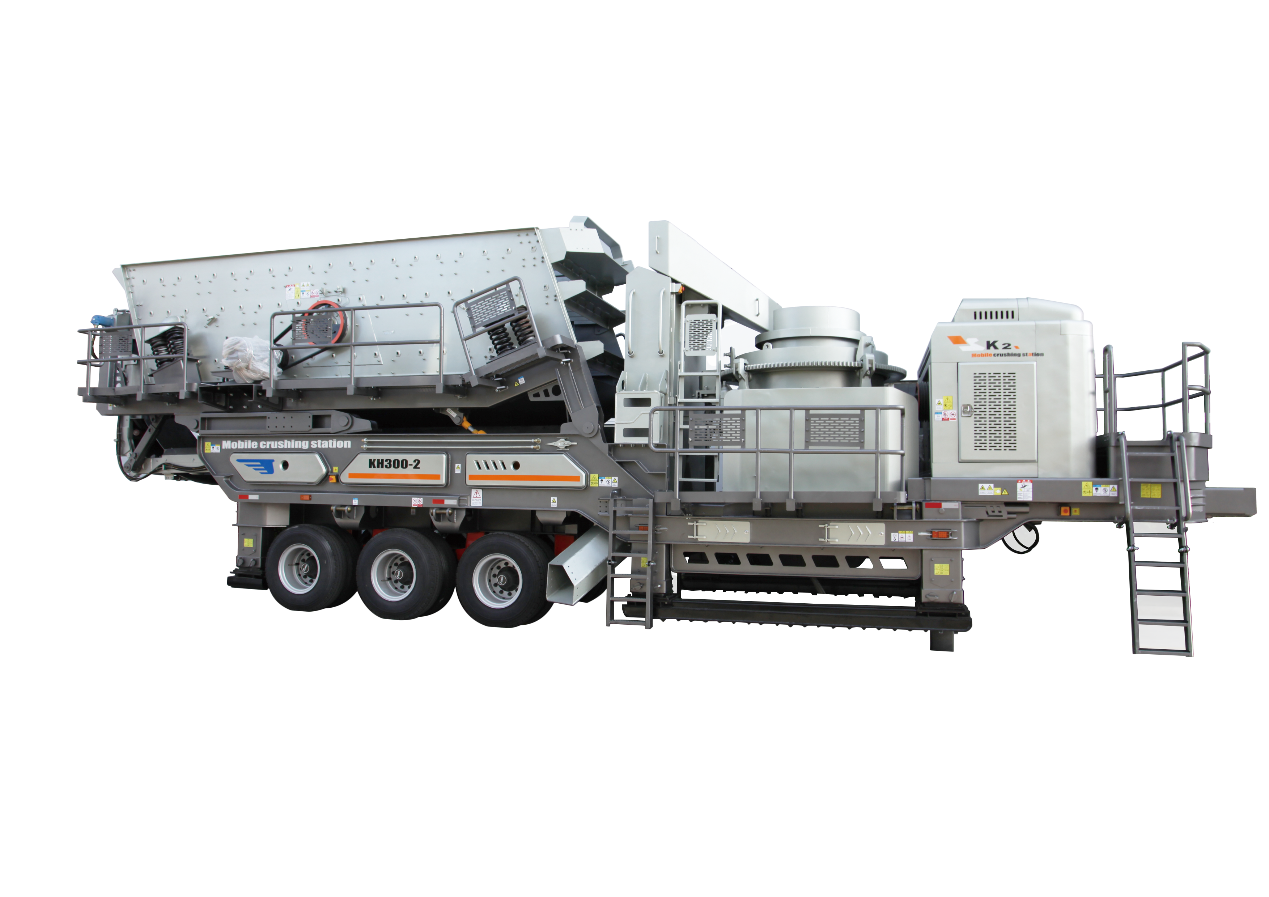

K Series Mobile Crushing Plant

Based on more than 30 years’ manufacture experience, millions of equipment units’ installation experience and abundant invested in research and development, SBM has released the K series portable crushing and screening plants, which contain 72 models that fit various crushing work in metal mines, building aggregates and solid waste treatment fields.


Technical Advantages

Mature and stable

Take advantage of the hydraulic system to control equipment installation, lifting, erection, transportation, contraction, folding and other motions to achieve simple and convenient

Thin oil lubrication

Equipped with sustained hoisting tools, operating platform, repair kit, and centralized control system, etc., to humanize maintenance and applications

Investment economy

The product widely adopts automotive covering parts, for example, streamlining hood design; the vehicle body sheet metal structure uses industrial aesthetic modeling to ensure specialized production of the equipment steel structure.

Configuration science, reduced energy consumption

The equipment has been optimized in structure design and product portfolio, so it has more types and more flexible combinations, able to provide users with more abundant and effective portable solutions.

Case

Main specification

Model Specs. of screening equipment Specs. of crushing equipment Specs. of main belt conveyor Hopper volume(m3) Max.feeding size (mm) Transportation dimension(mm)
KE600-1 TSW0936 PE600×900 B800×8.3m 5.3 500 12150×2600×3950
KE750-1 TSW1139 PE750×1060 B1000×8.5m 7 630 13000×2850×4400
KE760-1 TSW1139 PEW760 B1000×8.5m 7 640 13000×2800×4200
KE860-1 TSW1345 PEW860 B1200×9.5m 8 720 14600×3000×4500
KE1100-1 TSW1548 PEW1100 B1400×9.5m 11 930 14050×2900×4000
KJ98-1 TSW1139 HJ98 B800×8.3m 5.9 560 12150×2600×3950
KJ110-1 TSW1345 HJ110 B1000×8.5m 8.5 660 13200×3000×4400
KJ125-1 TSW1345 HJ125 B1400×9.5m 8 800 14600×3000×4500
KF1214Ⅱ-1 TSW0936 PFW1214Ⅱ B800×8.3m 5.3 500 12150×2600×3980
KF1315Ⅱ-1 TSW1345 PFW1315Ⅱ B1200×9.5m 8 600 14600×3100×4500
KF1415Ⅱ-1 TSW1548 PFW1415Ⅱ B1200×9.5m 11 700 14050×3000×4000
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
