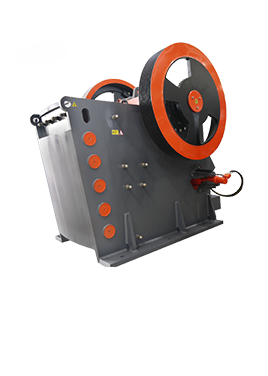

Jaw crusher

PEW series Jaw crusher features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by SBM, basing on our 30 year’s crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.


Technical Advantages

Mature and stable

V-shaped structure crushing cavity is able to meet a big feeding.

Thin oil lubrication

Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.

Investment economy

Use of finite element analysis technology helps to reach both light weight and high reliability.

Configuration science, reduced energy consumption

Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

Case

Main specification

Model Feed opening (mm) Maximum feeding size (mm) Range of discharge opening (mm) Capacity (t/h) Speed (r/min) Power (kw) Overall dimension (mm)
PEW250×1000 250×1000 220 20-40 15-50 330 30 1400×1850×1310
PEW250×1200 250×1200 220 20-40 20-50 330 37 1400×2050×1310
PEW400×600 400×600 350 35-85 15-70 250 37 1920×1460×1840
PEW760 760×1100 640 75-200 150-350 270 110 2600×2500×2200
PEW860 860×1100 720 100-225 200-500 240 132 3300×2320×3120
PEW1100 1100×1200 930 150-275 300-650 210 185 4140×2660×3560
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
