A Comprehensive Guide to Ultrafine Vertical Mill

Ultrafine vertical mill is advanced grinding equipment designed for processing various materials with high fineness, such as minerals, ores, cements, and other industrial materials. This ultrafine vertical mill provide users with energy-efficient and environmentally friendly grinding solutions that are suitable for a wide range of applications. In this guide, we will discuss the basic principles, key components, and advantages of ultrafine vertical mill.

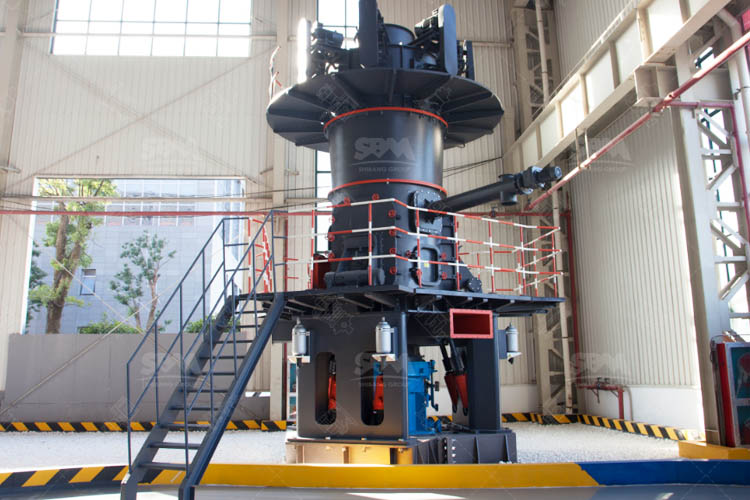

ultrafine vertical mill

How Does a Ultrafine Vertical Mill Work?

Ultrafine vertical mill operate using the principle of grinding and separation. The material to be ground is fed into the mill's center, where it is crushed by the grinding rollers and grinding table. The ground material then moves to the edge of the grinding table under the action of centrifugal force and is separated from the air stream by the dynamic and static separators. The separated fine particles are then collected by the dust collector, while the coarse particles are returned to the grinding table for further grinding.

Key Components of Ultrafine Vertical Mill

1. Grinding Table

The grinding table is the primary component in the ultrafine vertical mill's grinding process. It is responsible for providing a flat surface upon which the grinding rollers can crush the material. The grinding table is typically made of wear-resistant materials to ensure a long service life.

2. Grinding Rollers

Grinding rollers apply pressure to the material on the grinding table, causing it to be crushed and ground. These rollers are mounted on a rocker arm and are typically made of wear-resistant materials to ensure durability and longevity.

3. Separator

The separator is responsible for separating the ground material into fine and coarse particles. The fine particles are collected by the dust collector, while the coarse particles are returned to the grinding table for further grinding. The separator's efficiency directly impacts the mill's overall performance.

4. Dust Collector

A dust collector is an essential component of ultrafine vertical mills, responsible for collecting the fine particles separated by the separator. This component ensures that the grinding process remains clean and environmentally friendly.

5. Gearbox and Motor

The gearbox and motor provide power to the grinding table and ensure that it rotates at the optimal speed for grinding. These components are critical for the smooth operation and efficiency of the mill.

Advantages of Ultrafine Vertical Mill

1. High Grinding Efficiency

Ultrafine vertical mills are designed to efficiently grind materials to a high level of fineness, making them ideal for various industrial applications.

2. Energy Saving

These mills are known for their energy-saving capabilities, as they utilize advanced grinding technologies to reduce energy consumption during the grinding process.

3. Environmentally Friendly

Ultrafine vertical mills are equipped with dust collectors that minimize air pollution and ensure a clean working environment.

4. Wide Range of Applications

These mills can process various materials, including minerals, ores, and cements, making them suitable for diverse industries.

5. Low Maintenance

Ultrafine vertical mills are designed with wear-resistant components, requiring minimal maintenance and ensuring a long service life.


Ultrafine vertical mills are advanced grinding equipment that provides high fineness, energy efficiency, and environmentally friendly solutions for various industries. Understanding their working principles, key components, and advantages can help users make informed decisions when selecting grinding equipment for their applications.
